TuneRC - Iris F154 Carbon Fiber Frame
€14,95
Skip to product information
TuneRC - Iris F154 Carbon Fiber Frame
€14,95

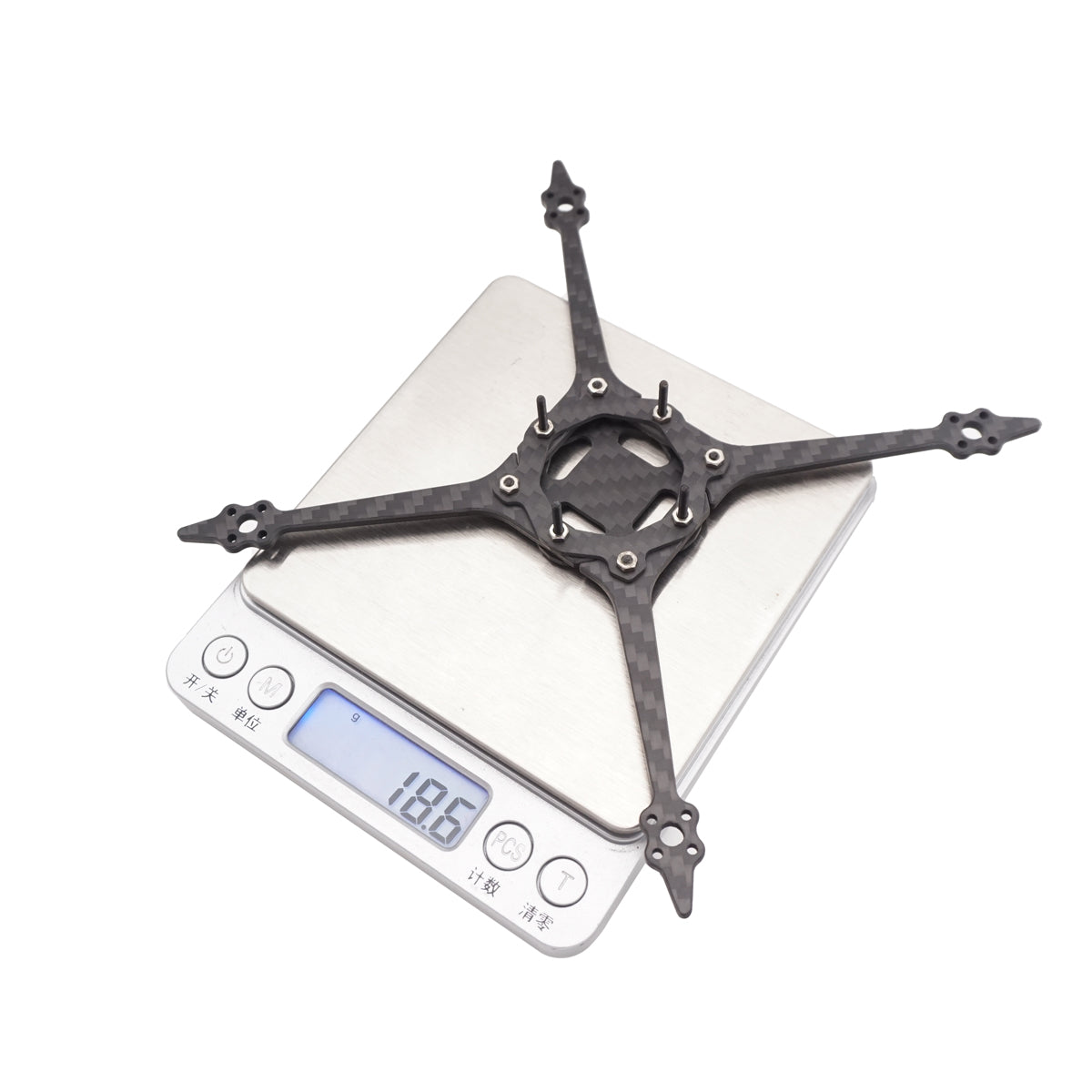

This Iris F154 frame is specifically designed for lightweight, quite and agile 3.5″ and 3″ toothpick builds. Fits 25.4mm x 25.4mm mounting pattern AIO board, 9mm x 9mm mounting pattern motors. It only weighs 18.6g, with four arms+ two plates and hardware. The separated arms design makes it easy and cheap to maintain. Dedicated room is reserved for you to tuck the battery strap through the frame, so your build looks much cleaner. Carefully crafted DJI O3 air unit mount makes the air unit fit perfectly on this X configuration frame.
Tip for frame assembly: we highly recommend using medium strength threadlocker during screw installations, this could prevent the screws from loosening during flight.
Specification
- Diagonal Length: 154mm
- Arm Thickness: 3mm
- Middle Plates Thickness: 1.5mm

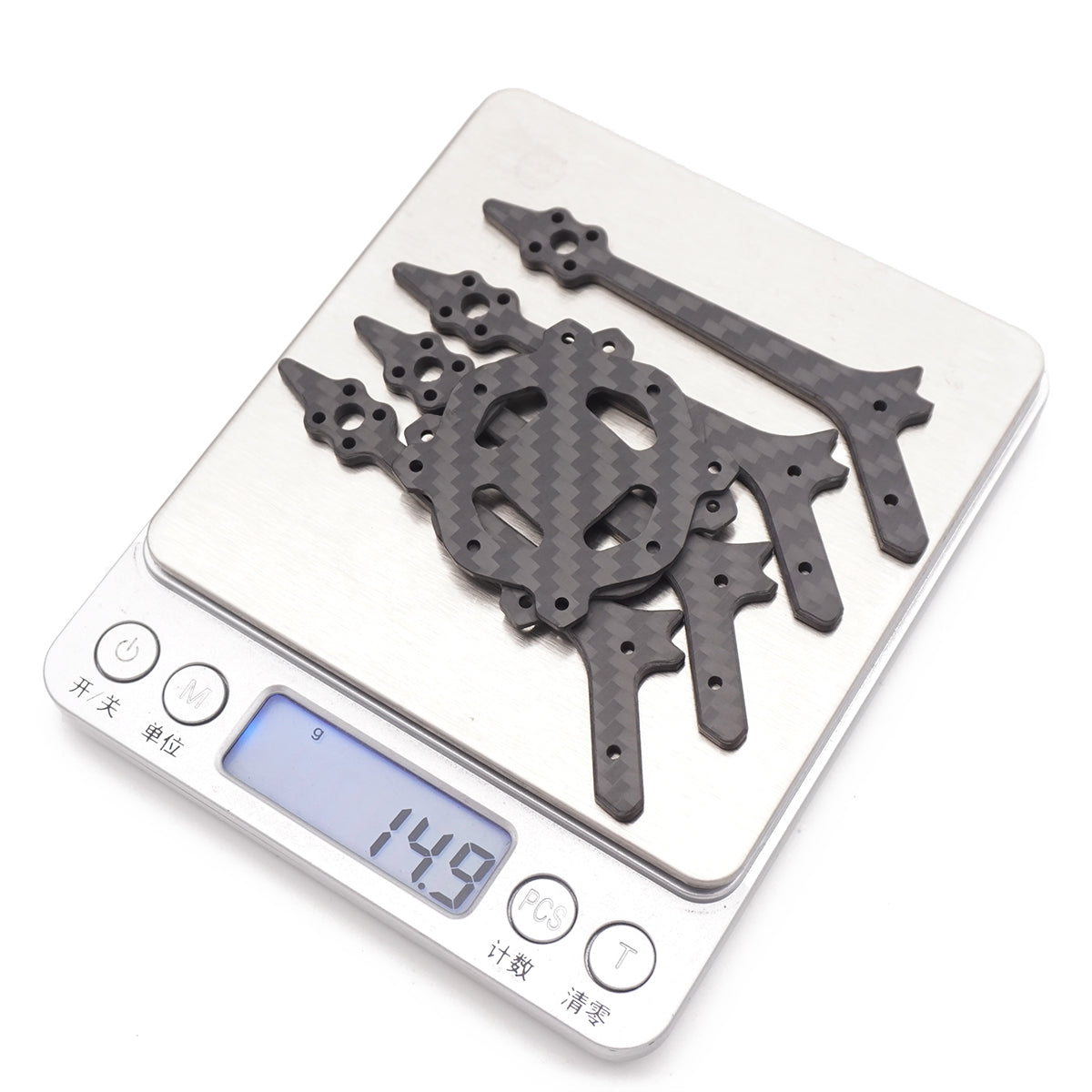

- Weight: 15g (4* frame arms+ 1* top plates+ 1* bottom plates)
- AIO mounting pattern: 25.4mm x 25.4mm M2
- Motor mounting pattern: 9mm x 9mm M2
- Arms are well chamfered
Recommended Builds
- Motor: VCI 1204 5600kv motors
- AIO: Poly F405 2S-4S AIO
- Props: Gemfan Hurricane 3020-3
- VTX: Analog/ DJI O3/O4 pro air unit
- Battery: 3S-4s 450/550mah
- Canopy: TuneRC Mount Package
Package
Iris F154 Frame Kit Package
- 4* frame arms
- 1* top plates
- 1* bottom plates
- 1* 115mm battery strap (suitable for 3s 450mah battery)
- 4* M2 x 8 socket head cap screws, 4 * M2 x 18 socket head cap screws, 3 * M2 x 9 socket head cap screws, 8* M2 nuts
