TuneRC - Iris F118E V3 Carbon Fiber Frame
€17,95
Skip to product information
TuneRC - Iris F118E V3 Carbon Fiber Frame
€17,95

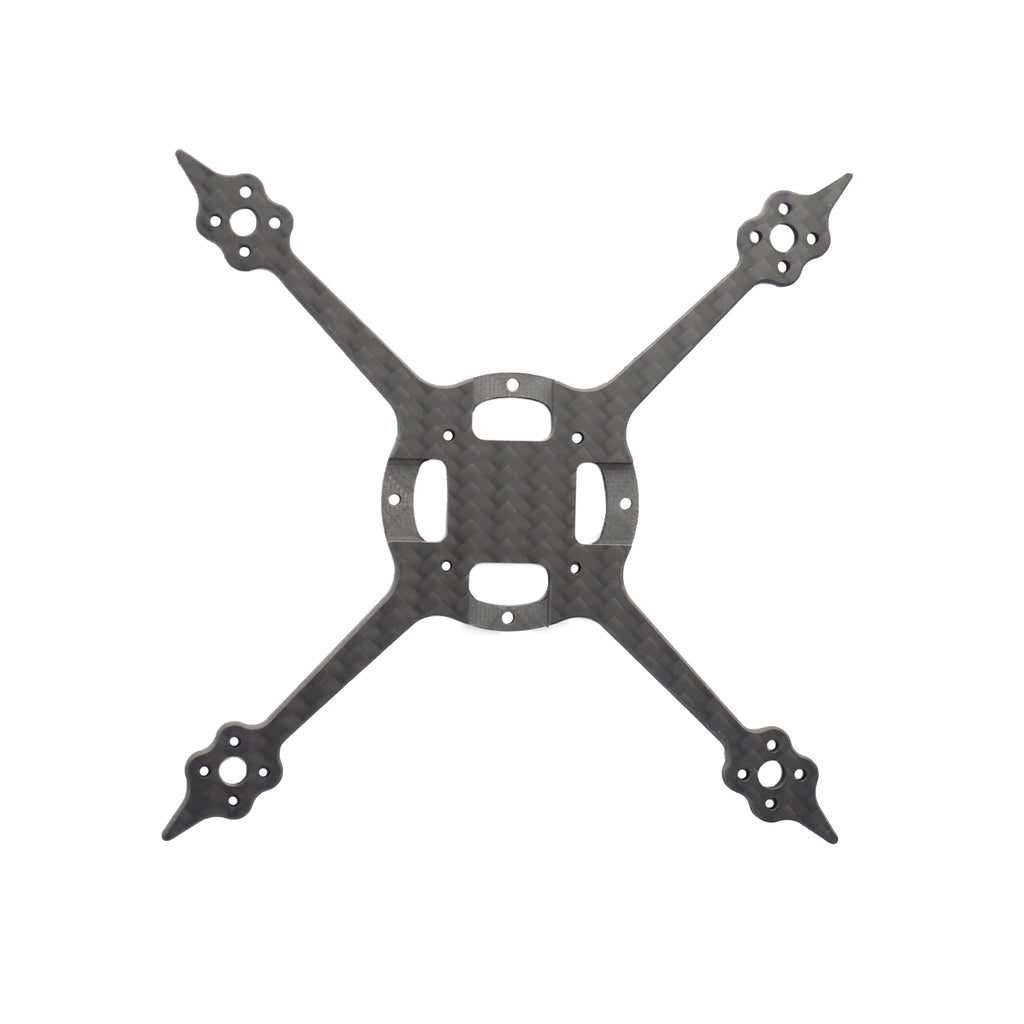

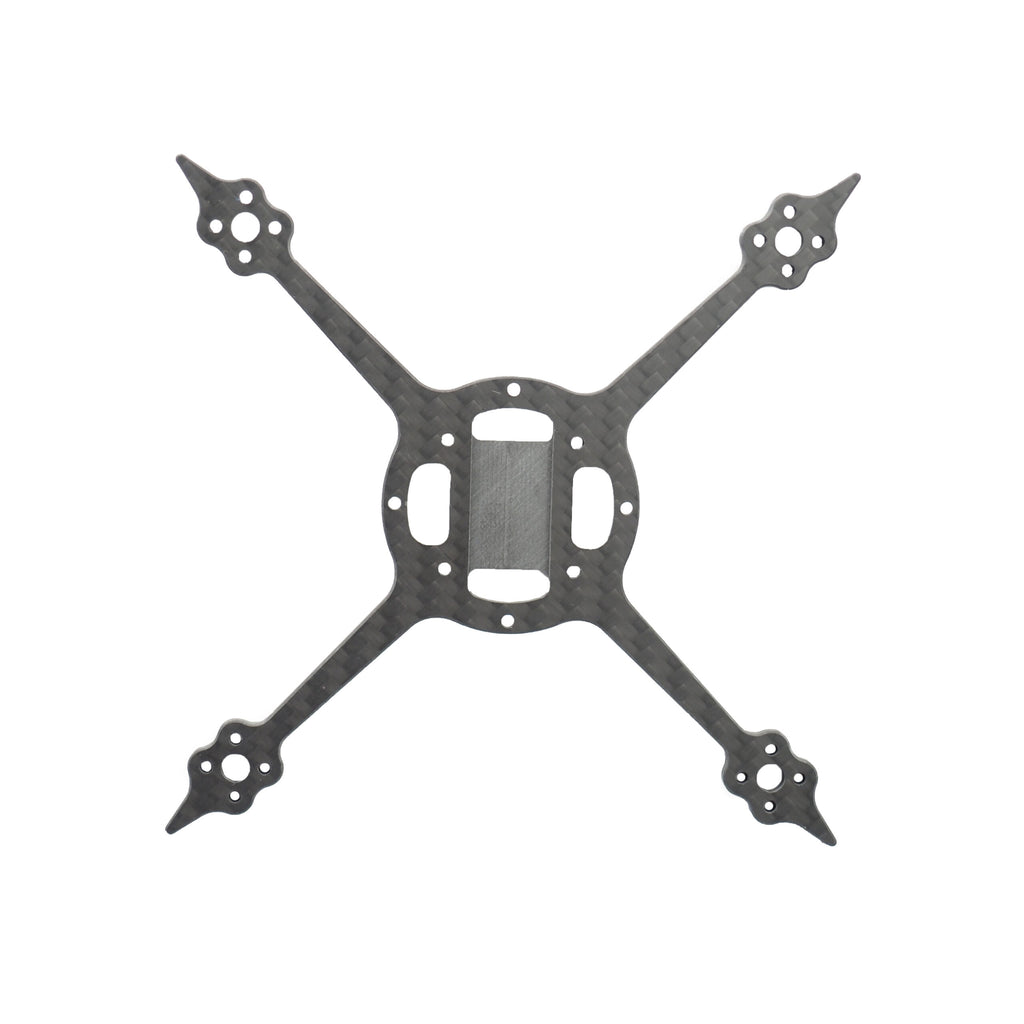

Iris F118E V3 Carbon Fiber Frame
Robust and Light, Perfect for 3″ 1S-4S Toothpick Quads
Our popular 3inch frame has now evolved to its third variation. 3mm thickness, 9.4g weight and thoughtful frame design, all of the factors above make it a great choice for agile, floaty and efficient 3″ 1S-4S toothpick builds. FC mounting pattern fits both 25.4mm x 25.4mm and 20mm x 20mm FC, making it a versatile frame option for more build potential.
Fits USB Vertical Direction FC
On the Iris F118E V3 frame design, we went back to the V1 appearance design because of the V1 118mm frame’s outstanding reliability and rigidity performance. We enlarged the inner holes of the frame to make the frame fit perfectly with the USB vertical direction FC.
Specification
- Diagonal Length: 118mm
- Weight: 9.4g
- Thickness: 3mm
- Arms are well chamfered
- FC mounting holes: 20 x 20mm, 25.4 x 25.4mm
- Motor mounting holes: M2 ( diagonal 9mm )
In the box
- 1 * Iris F118E V3 carbon fiber frame
- 4* M2 x 18mm inner hex screws
- 4* M2 nuts
- 1* 115mm full-length battery strap
